This article explains how Multi-Factor Authentication (MFA) works in Assure and how to set it up. MFA adds a second verification step to the standard username and password login by emailing the user a 6-digit one-time passcode. MFA applies only to username and password authentication; it is not available for SSO logins. MFA can be enabled independently for the main Assure web application and for AssureGO+ (the Evotix mobile Progressive Web Application). Enabling MFA requires the Evotix Support Team to activate the feature, all users to hold unique email addresses, and Login Management to be configured in System Settings. System Administrators can generate an MFA code on behalf of a user if the user cannot access their email.
Prerequisites
Three conditions must be in place before MFA can function:
- MFA must be enabled by the Evotix Support Team. Raise a ticket through the Evotix Support Portal to request MFA to be activated. MFA cannot be self-enabled by customers.
- Users must have unique email addresses. MFA uses the email address linked to each user profile to send the one-time passcode. Duplicate email addresses will prevent MFA from functioning correctly.
- Login Management must be enabled. Navigate to Settings > System Configuration > System Settings > Password and Login Management and tick the Use Login Management checkbox.
Overview
Multi-Factor Authentication (MFA) is a multi-step login process that requires a user to provide more than just a password, adding an extra layer of security to the authentication process.
MFA is available in Assure when users authenticate with a username and password. When enabled, users are emailed a 6-digit one-time passcode that they must enter to complete login.
MFA can be enabled independently for:
- The main Assure web application
- AssureGO+ (the Evotix mobile Progressive Web Application)
Note: Enabling MFA for AssureGO+ applies the requirement across all AssureGO+ Portal Dashboard instances. Consider whether your AssureGO+ users will have access to their email account when working on site before enabling MFA for AssureGO+.
Configuring Login Management for MFA

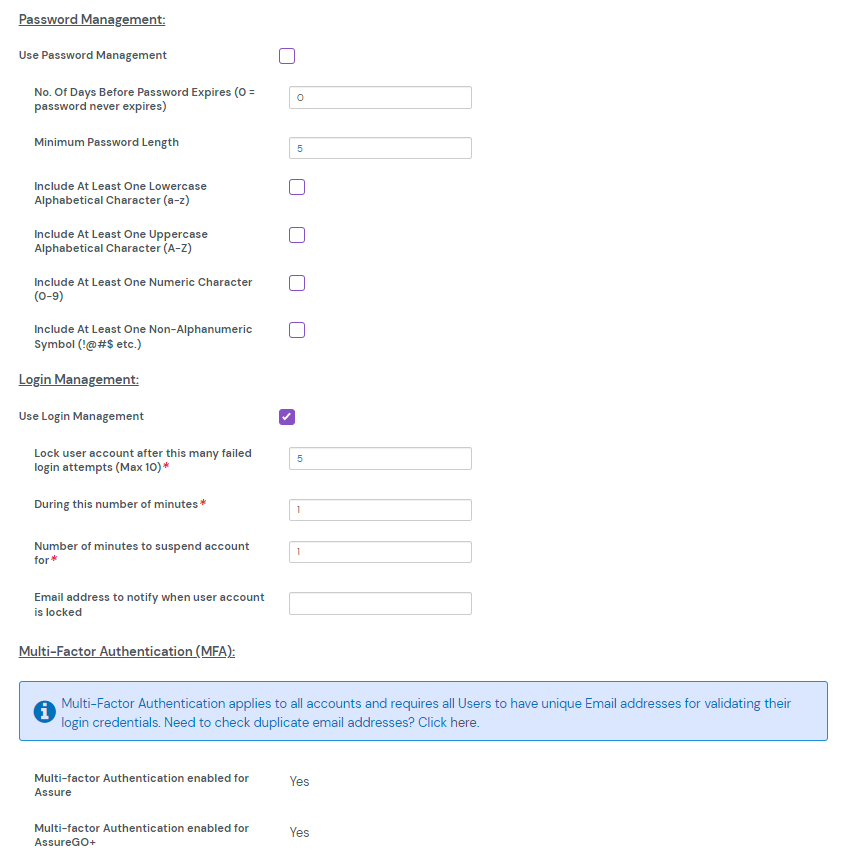

Once MFA is enabled by Evotix, Login Management must be configured to control account lockout behaviour. Go to Settings>System Settings> Password and Login Management and check ‘Use Login Management’ in the Assure System Settings. The following settings are available within the Login Management section of System Settings:
- Lock user account after this many failed login attempts - Set the maximum number of incorrect password or MFA code attempts before the account is locked. The maximum is 10 attempts.
- During this number of minutes - Specify the time window within which failed attempts are counted.
- Number of minutes to suspend account for - Define how long an account remains locked after too many failed attempts.
- Email address to notify when a user account is locked - Enter an email address (typically a System Administrator's) to receive a notification whenever an account is locked. System Administrators can manually unlock user accounts via User Management.
Example configuration: A user has 5 attempts within 1 minute to log in correctly. If they fail all 5 attempts, their account is locked for 1 minute. After waiting 1 minute, they can try again.
The MFA Login Journey
When MFA is enabled, the login process follows these steps:

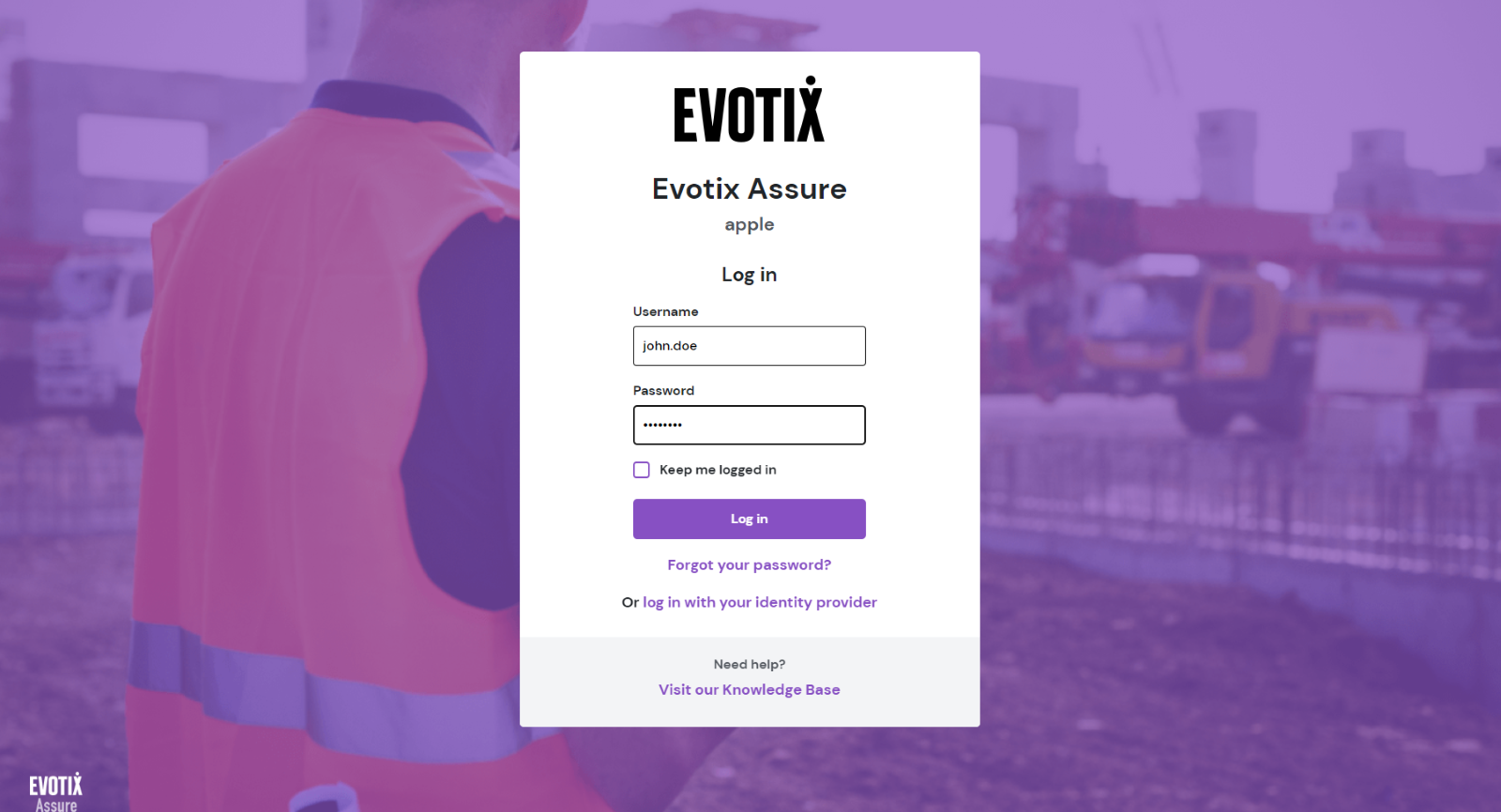

Step 1: The user navigates to the Assure login page and enters their username and password.

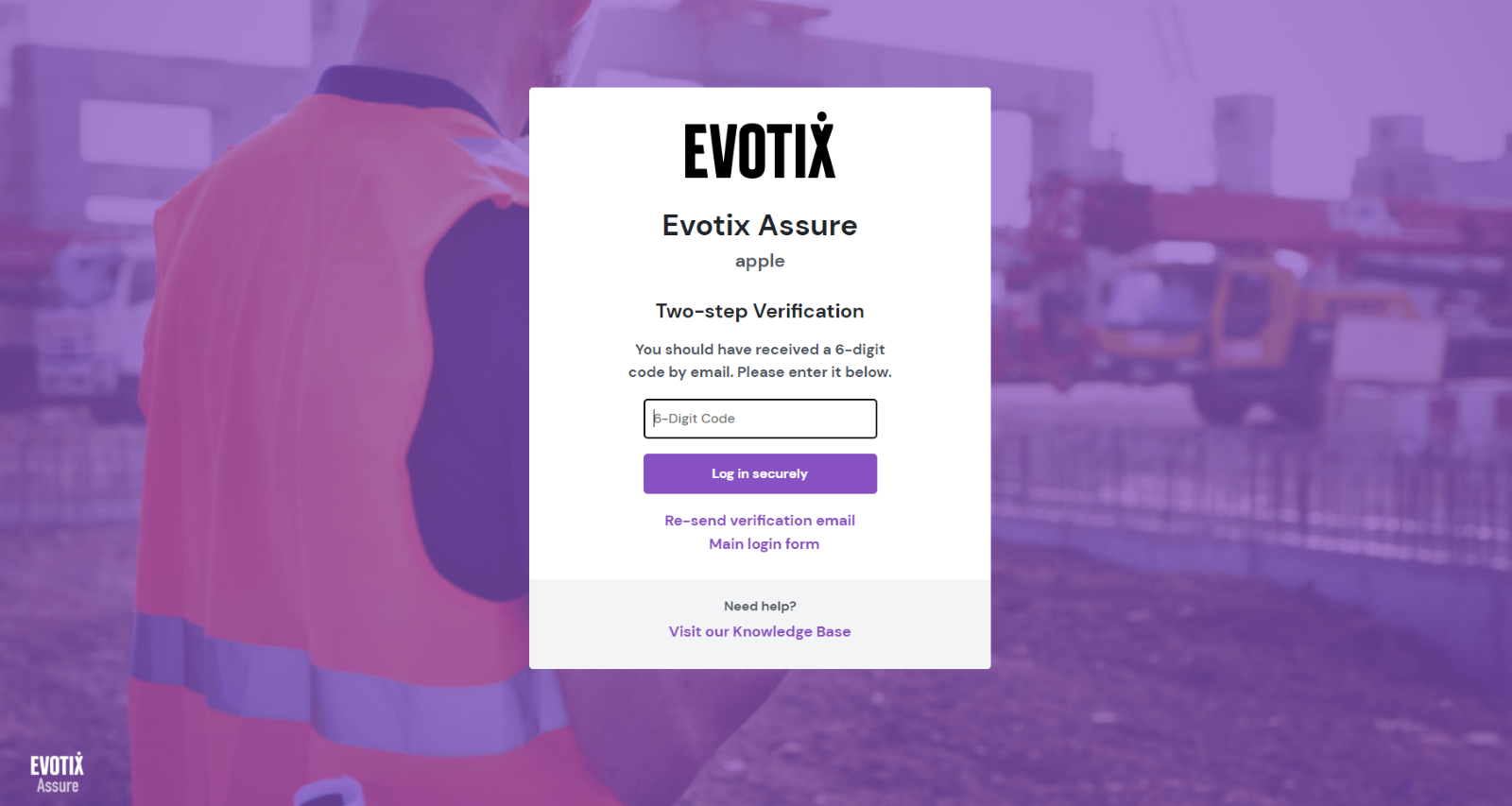

Step 2: After clicking Log in, the system presents a Two-step Verification screen. Assure sends a 6-digit code to the email address linked to the user's account.
Step 3: The user enters the 6-digit code in the verification screen and clicks Log in securely to complete authentication.
If the code is not received: The user can click Re-send verification email to request a new code. A new code replaces the previous one, so only the latest code will be valid.

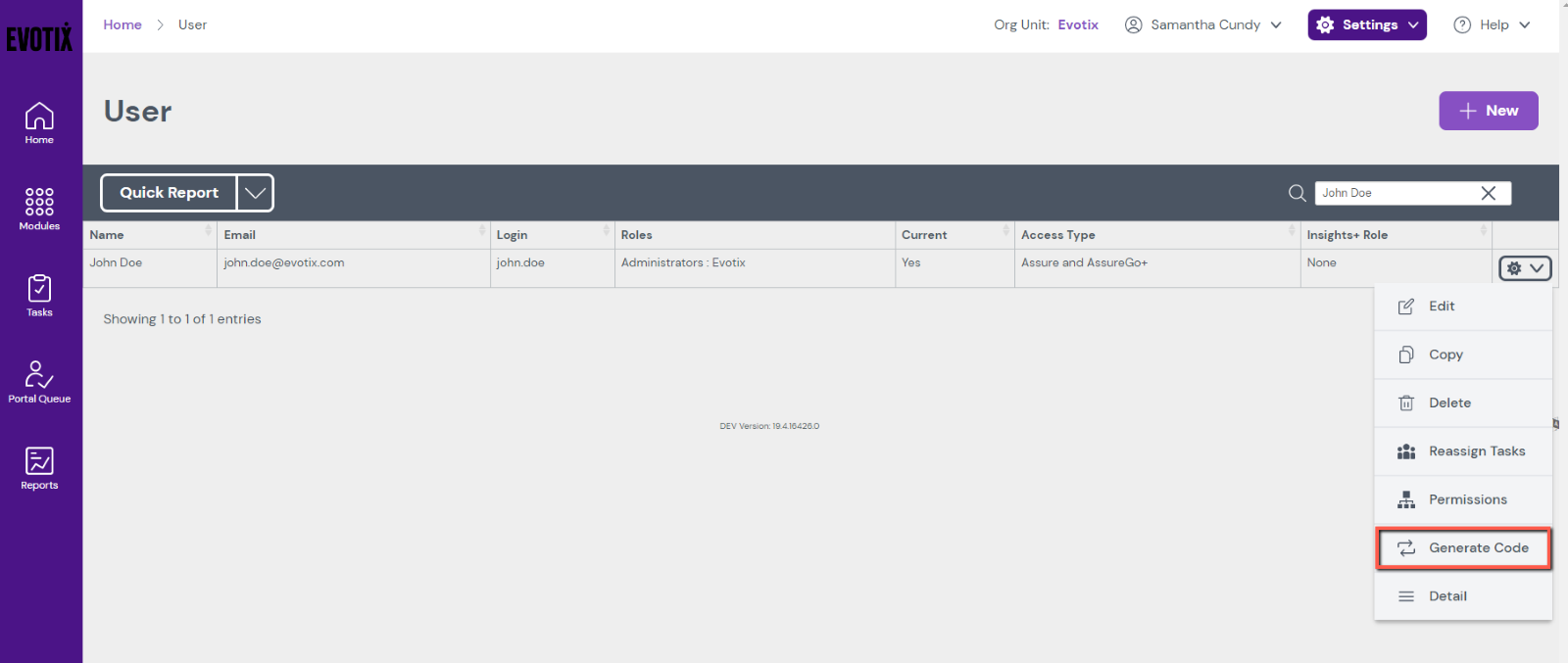

Administrator: Generating an MFA Code on Behalf of a User

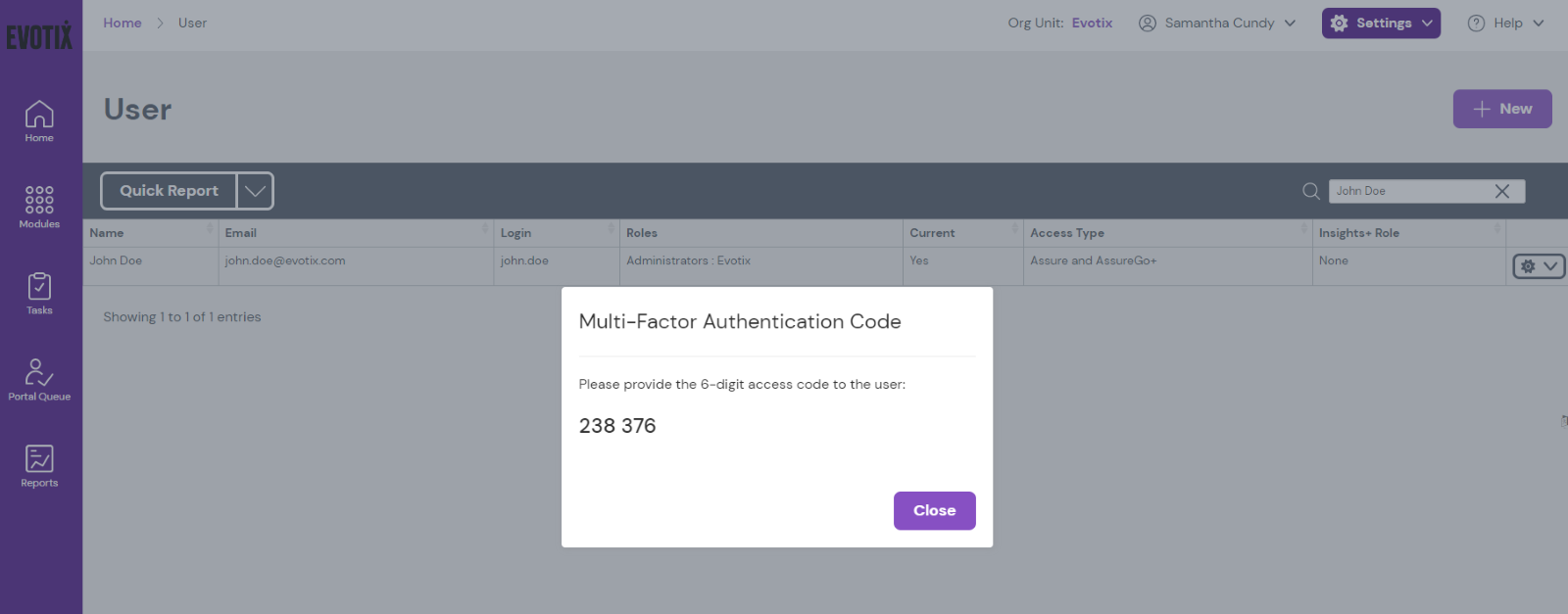

If a user cannot access their email account and is unable to complete the MFA verification step, a System Administrator can generate an MFA code on behalf of the user via User Management.
The generated code can then be shared directly with the user, allowing them to complete login.
Note: The option to generate an MFA code for a user is only available where MFA applies to that user's account type. For example, if MFA is enabled for Assure only and not AssureGO+, the code generation option will not appear for AssureGO+-only users.
