This article explains how to configure dashboards within Assure. It covers two distinct dashboard areas: the Homepage Dashboard (the user-specific landing screen on the Assure Homepage) and Module Dashboards (individual dashboard areas available within each Assure module, such as Incident, Risk Assessment, or Audit).
Users can configure Quick Add Record shortcuts (links that open a blank new record form directly), Shortcuts (links that navigate to a module list view), and My Tasks (a panel showing tasks assigned to the logged-in user). Additionally, users can add Data Charts (visual chart widgets) to both the Homepage Dashboard and Module Dashboards.
Dashboards are user-specific: each user configures their own dashboard independently, enabling them to surface data relevant to their role. A System Settings limit controls the maximum number of chart items a user can add per module dashboard. Filters used within dashboard charts must meet specific date criteria rules.
This article is scoped to the Assure main system and spans all modules that have an individual dashboard area. There are no AssureGO+ cross-module implications for this feature.
Overview
The Assure Homepage (the main landing screen after login) and each module within Assure have their own Dashboard (a configurable visual summary screen). Dashboards support:
- Quick Add Record links (a shortcut that takes the user directly to a blank new record form for the selected module)
- Shortcuts (a link that navigates the user directly to the module list view)
- My Tasks (displays tasks assigned to the logged-in user)
- Data Charts (chart widgets displaying statistical data at a glance)
Dashboards are personal to each user. One user can configure their dashboard completely differently from other system users, tailoring the view to the data most relevant to their role.
Section 1: Configuring Quick Add Record Links and Shortcuts

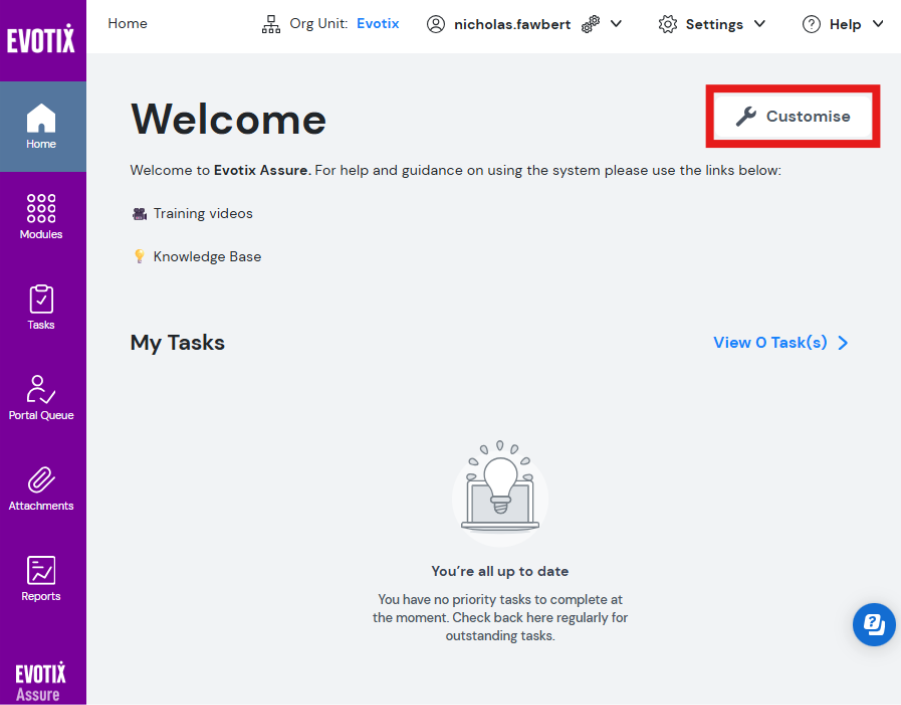

Step 1: Open the Customise menu

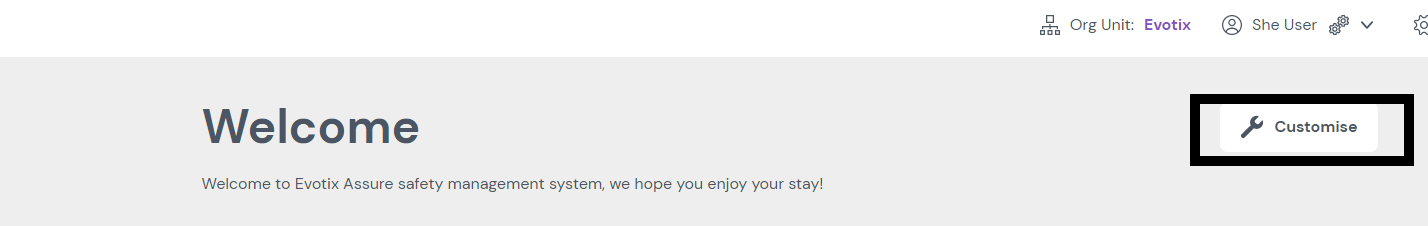

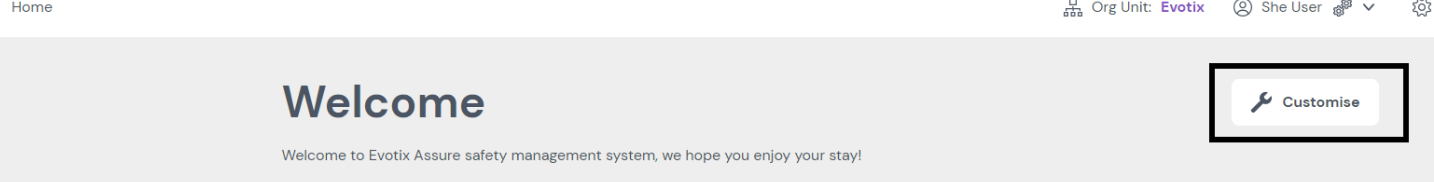

On the Assure Homepage, click the Customise icon.

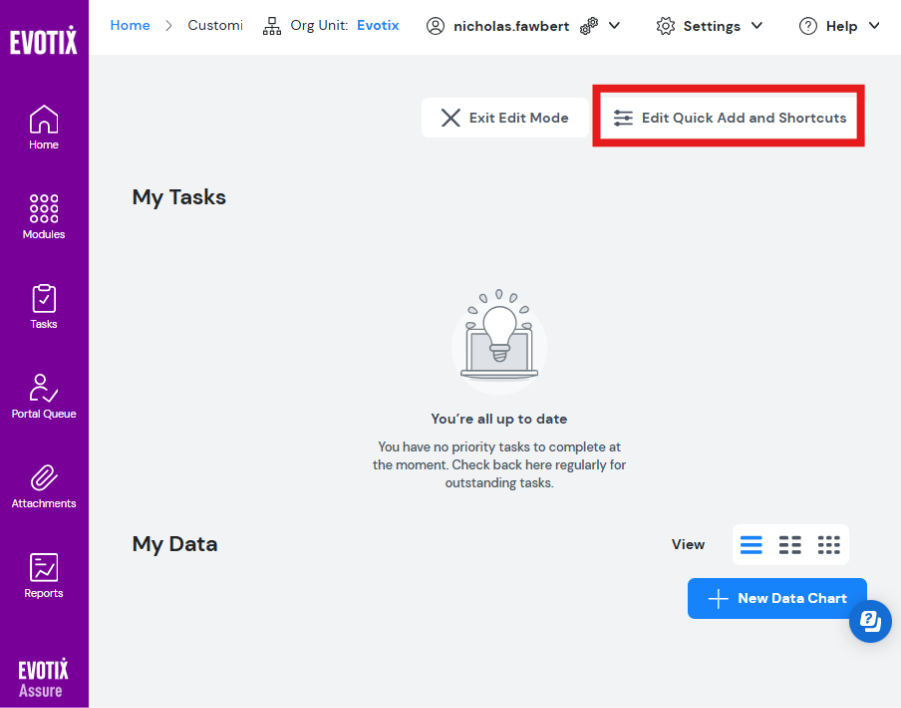

Step 2: Select the edit option

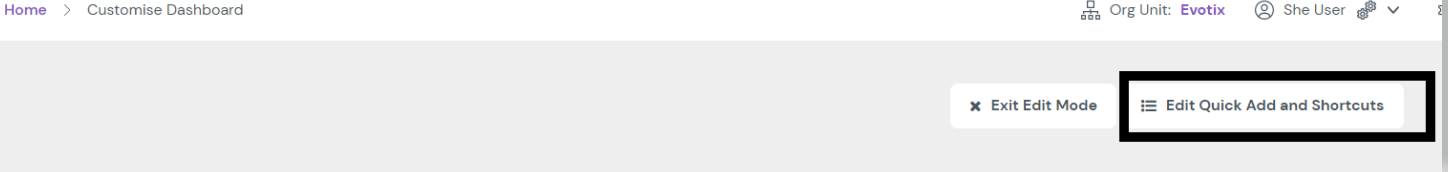

Click Edit Quick Add and Shortcuts from the menu that appears.
Step 3: Add modules

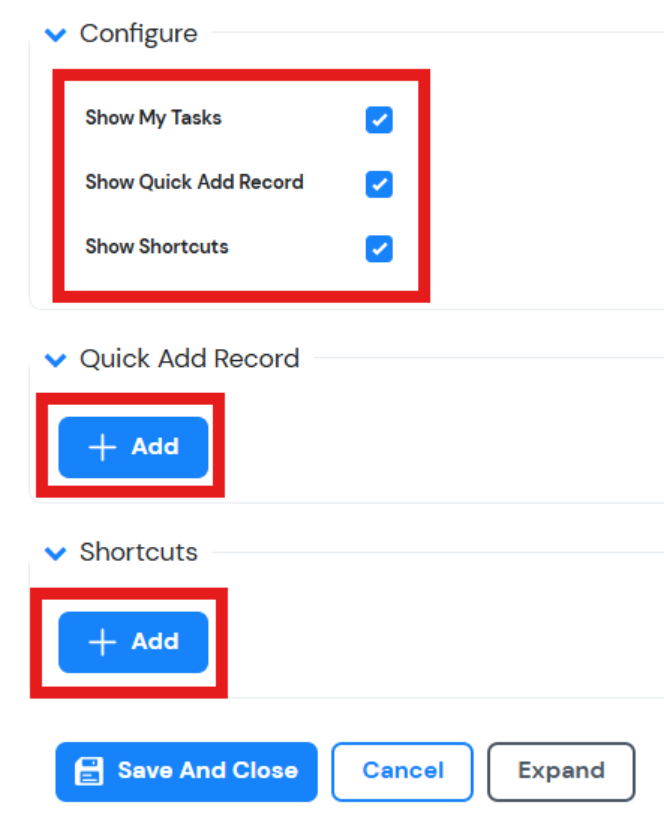

Click Add to choose which modules to create Shortcuts and Quick Add Record links for.

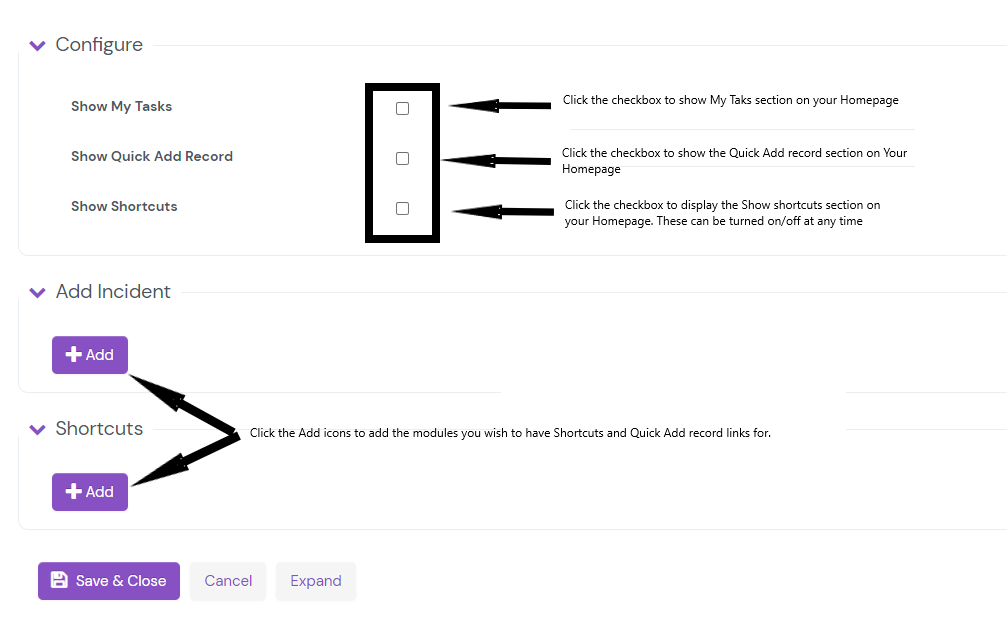

Make sure in the Configure section, that you have enabled each section that you want to appear in your Home Dashboard.

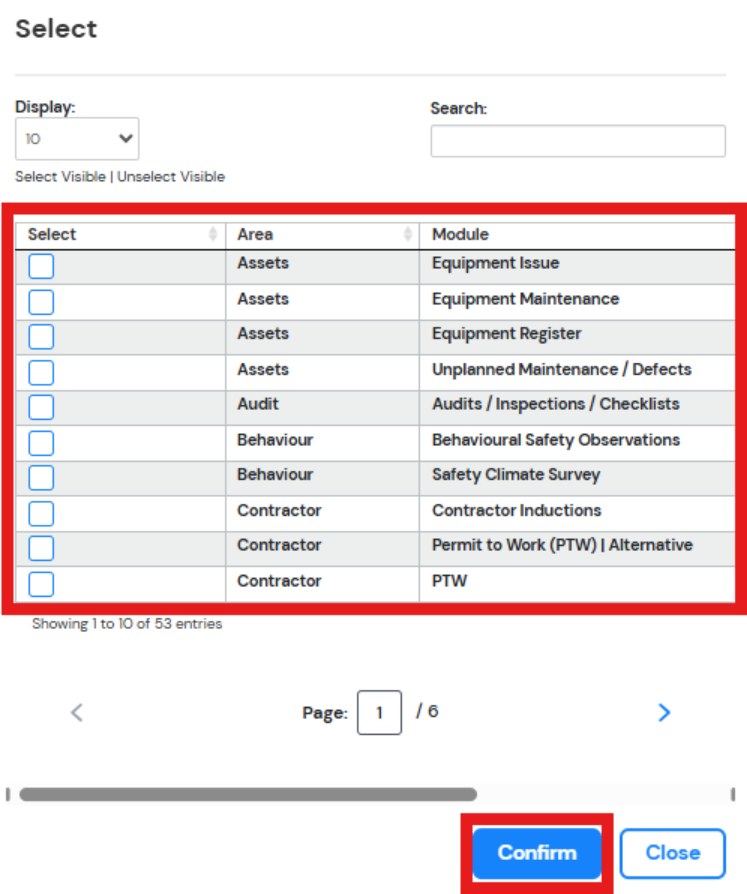

Step 4: Select modules

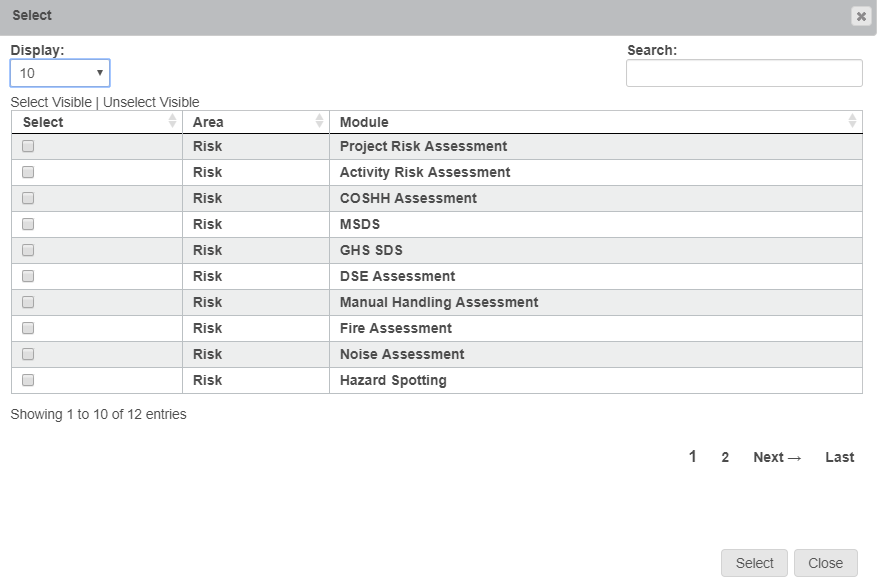

Select the modules to display in the pop-out module menu.
Step 5: Save

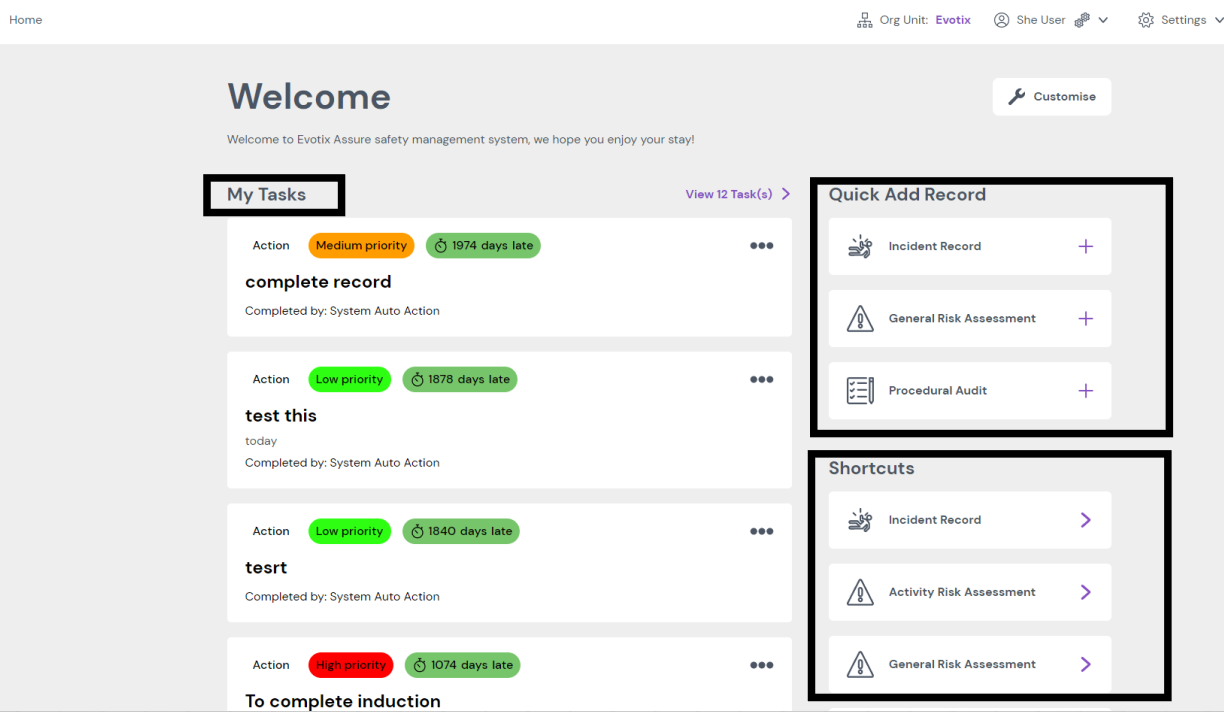

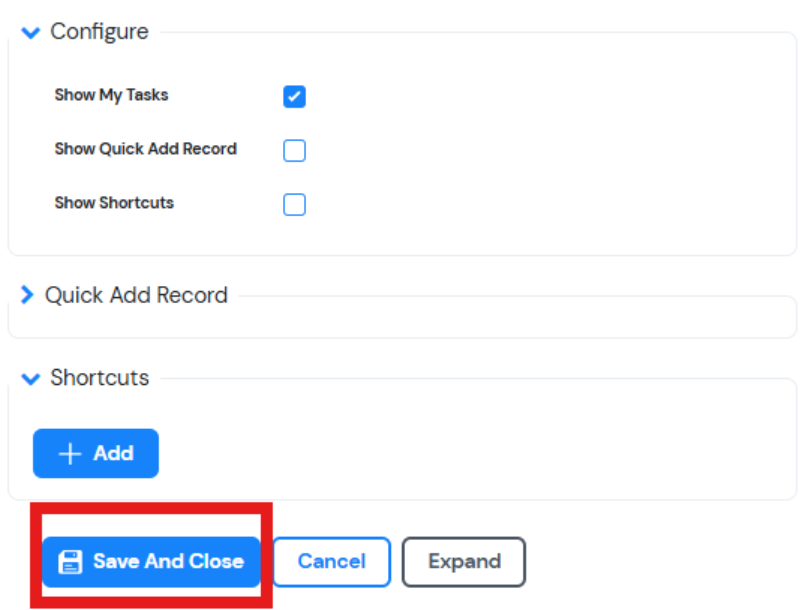

Click Save and Close. The Homepage will now display the configured Quick Add Record and Shortcut links alongside the My Tasks panel.
Section 2: Adding a Data Chart to a Dashboard
Data Charts can be added to both the Homepage Dashboard and to individual Module Dashboards.
Step 1: Open the Customise menu
Click the Customise icon on the relevant dashboard.

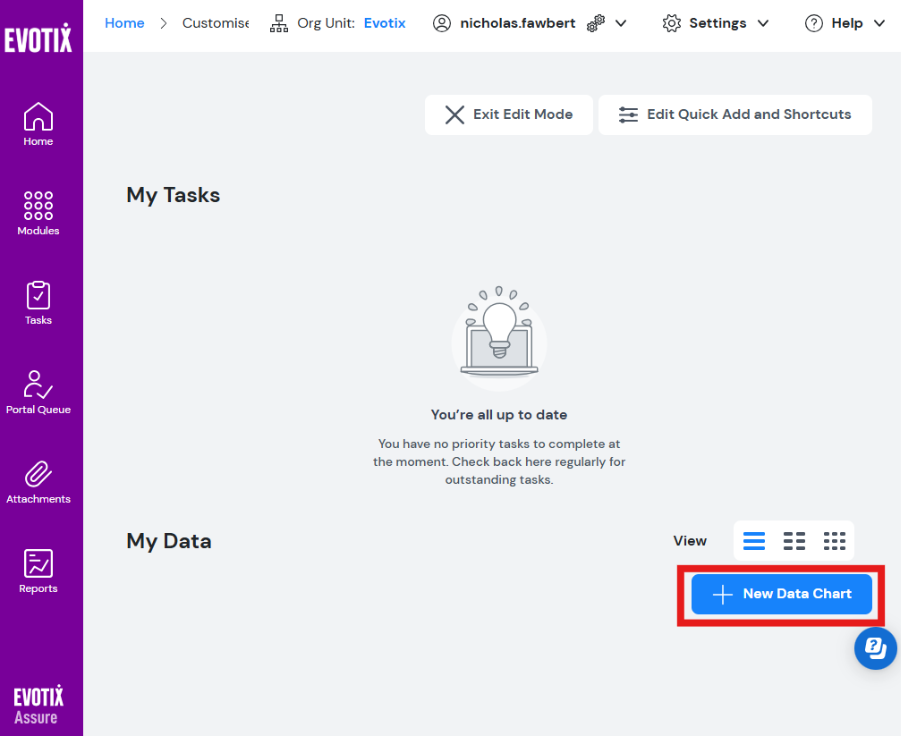

Step 2: Open the chart creation tool

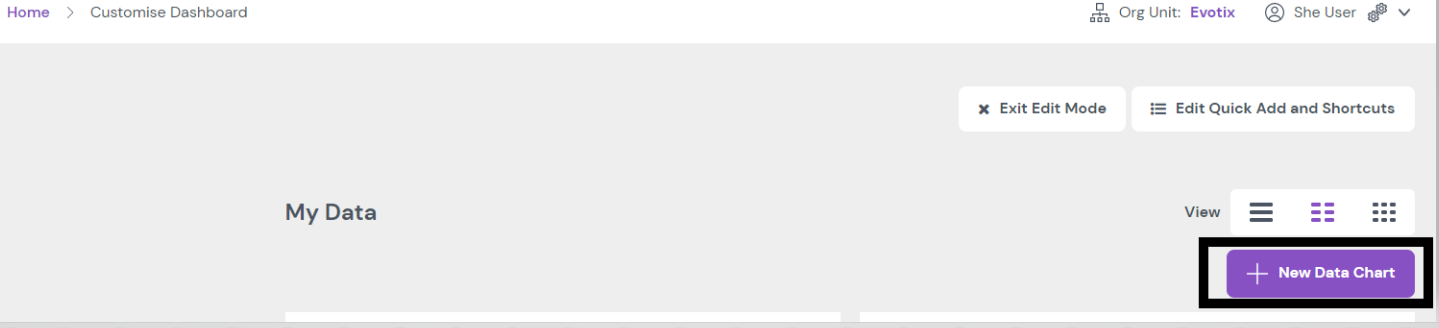

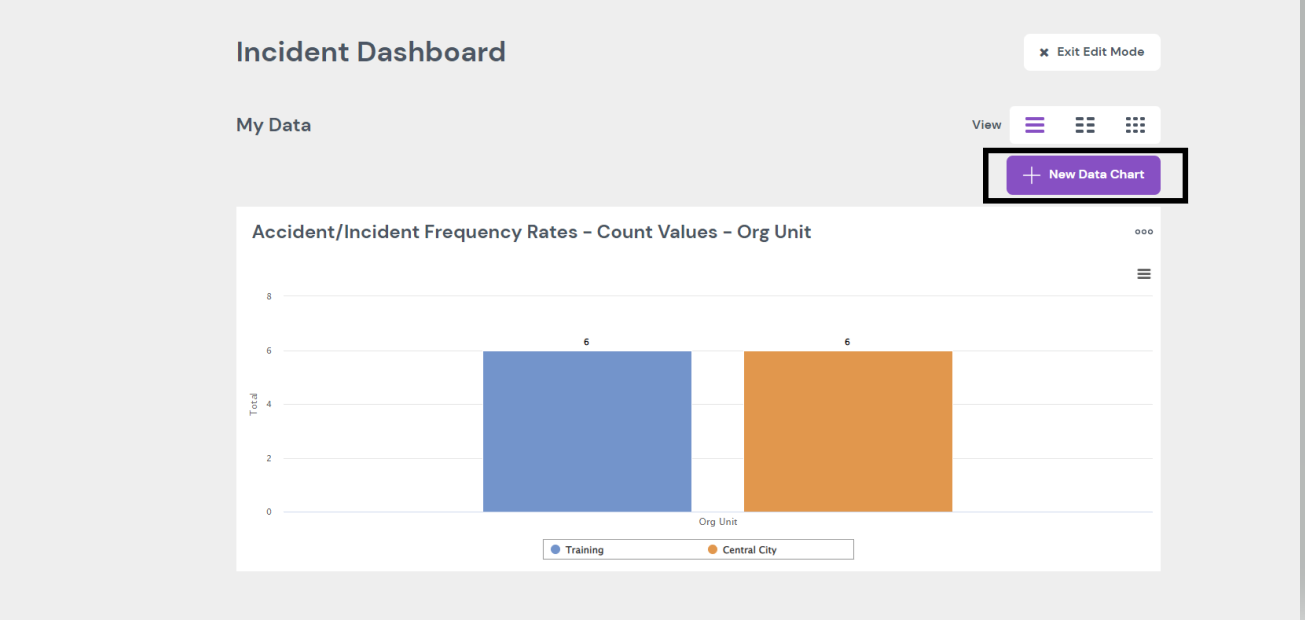

Click the New Data Chart icon that appears.

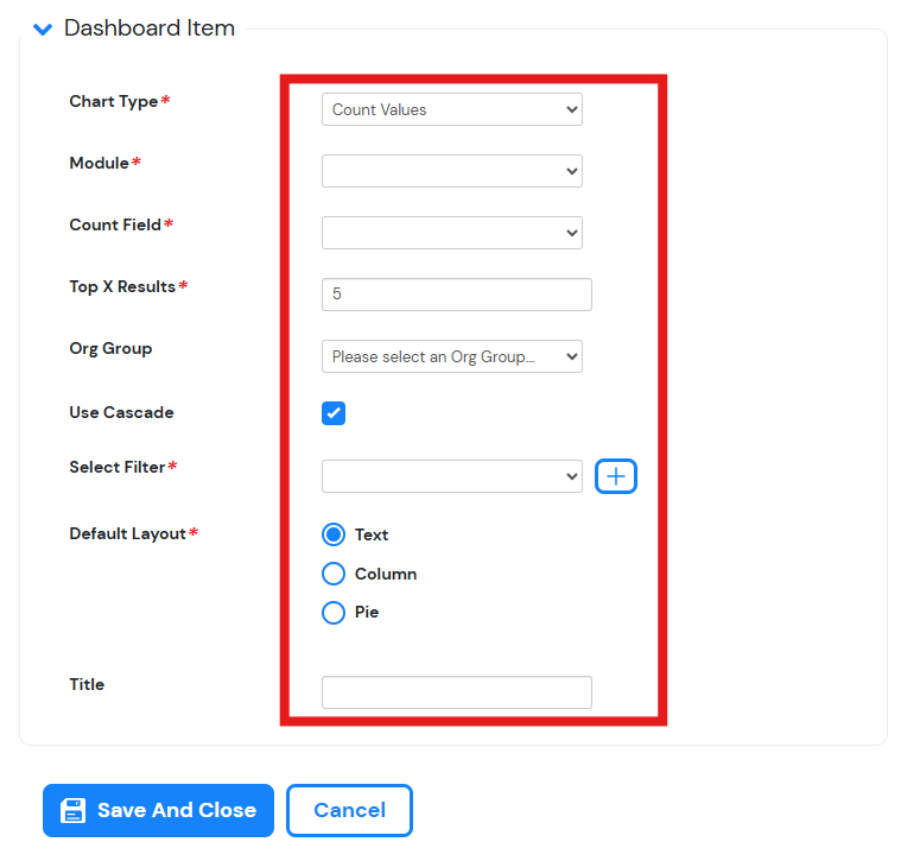

Step 3: Configure the chart

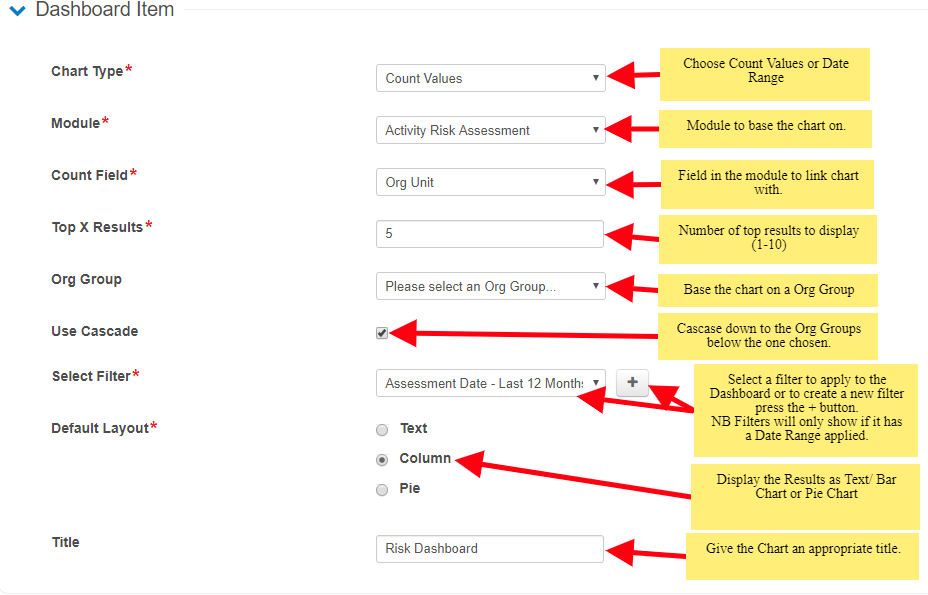

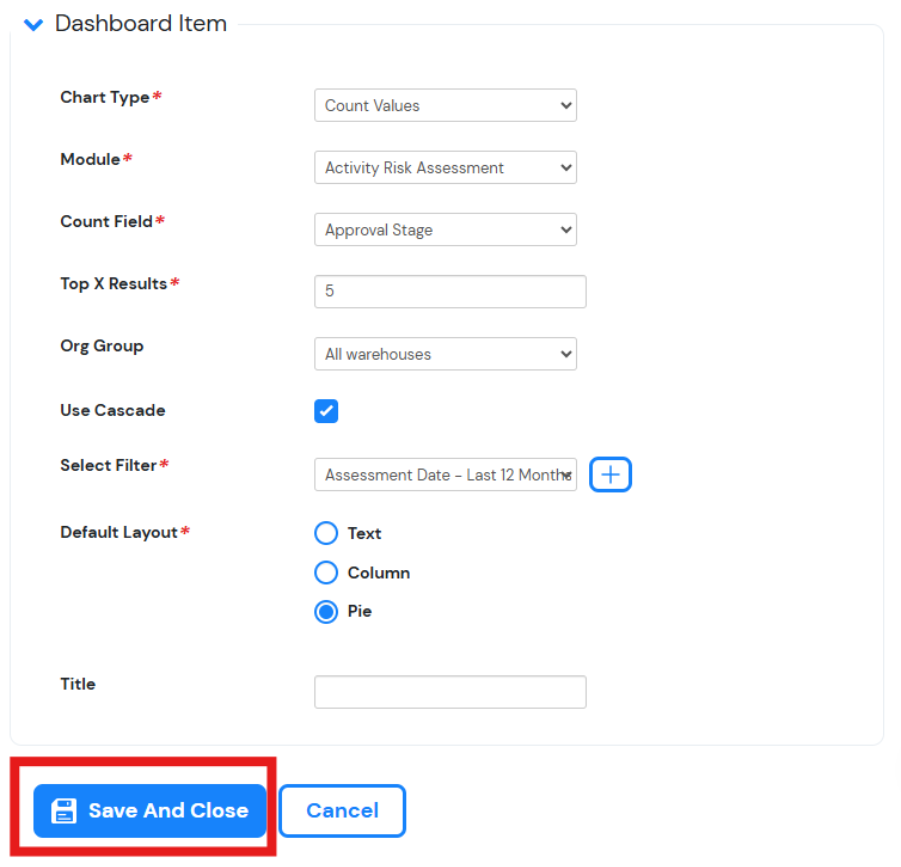

Set up the chart by filling in the available fields with relevant information.
| Field | Usage |
| Chart Type | Choose Count Values or Date Range |
| Module | Module to base the chart on |
| Count Field | Field in the module to link the chart with |
| Top X Results | Number of top results to display (1-10) |
| Org Group | Base the chart on an Org Group |
| Use Cascade | Cascade down to the Org Groups below the one chosen. |
| Select Filter | Select a filter to apply to the Dashboard (to create a new filter press the '+' button). NB filters will only show if Date Range has been applied. |
| Default Layout | Display the results as Text, a Bar Chart, or a Pie Chart |
| Title | Give the Chart an appropriate title. |
Step 4: Save
Click Save. The chart is now added to the dashboard.
Section 3: Filters for Use Within Dashboard Charts
For a Filter (a saved set of criteria that restricts the records shown) to appear as an option when configuring a dashboard chart, the filter must comply with the following rules:
- The filter can contain only 1 date criteria.
- The date criteria must provide a date range.
Valid date range criteria:
- Last X days
- Next X days
- Last X weeks
- Next X weeks
- Last X months
- Next X months
- Last X years
- Next X years
- Between
Section 4: Configuring Module-Specific Dashboards
In addition to the Homepage Dashboard, each module in Assure has its own individual Dashboard area.

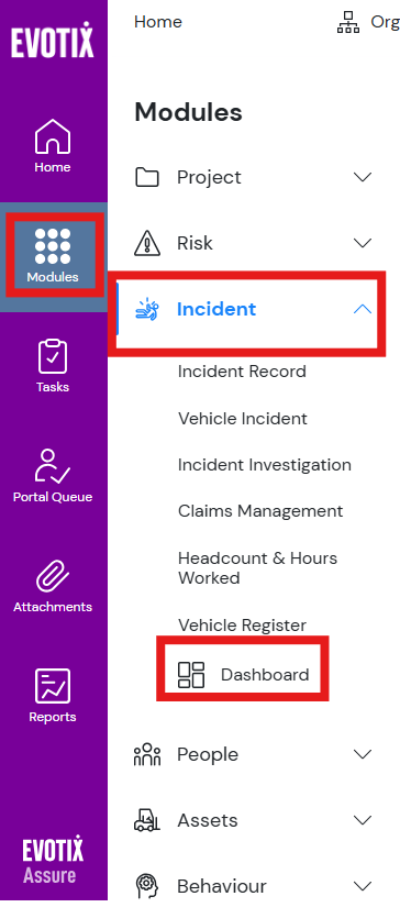

Step 1: Navigate to the module dashboard

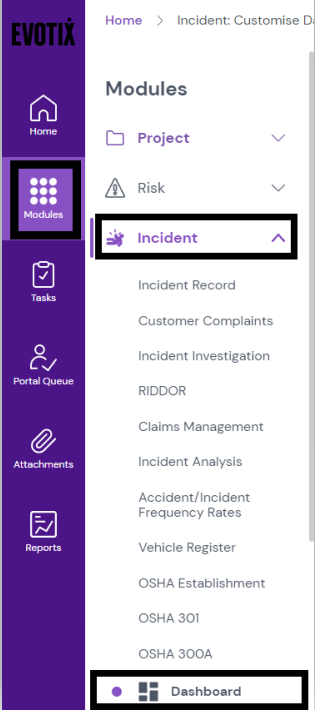

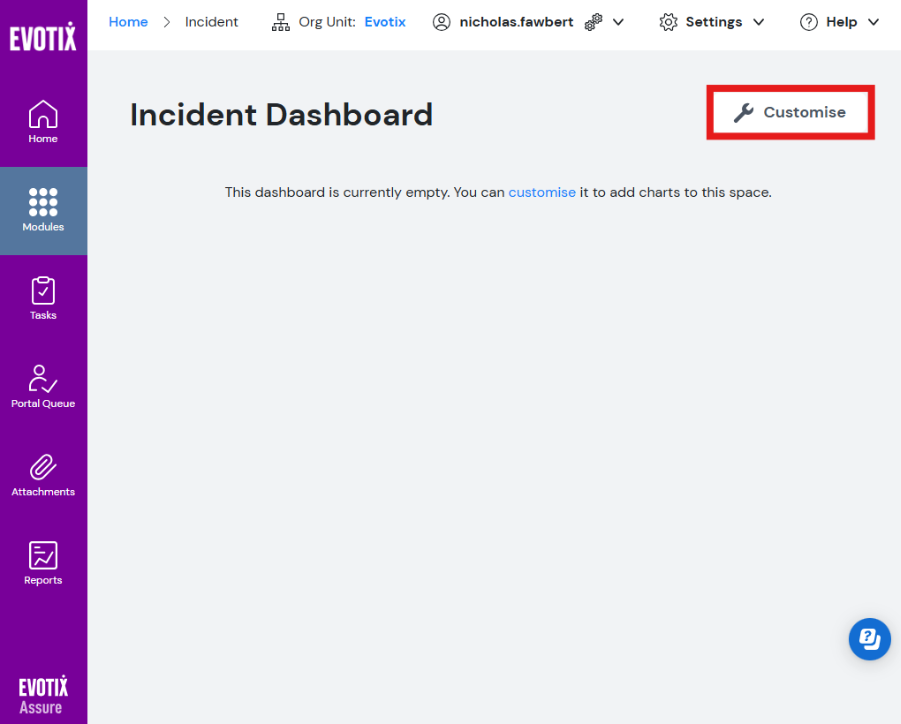

Click the Modules menu in the main navigation, then click the module name (for example, Incident). The menu expands to show all sub-modules along with a Dashboard option. Click Dashboard to open the module's dashboard area.

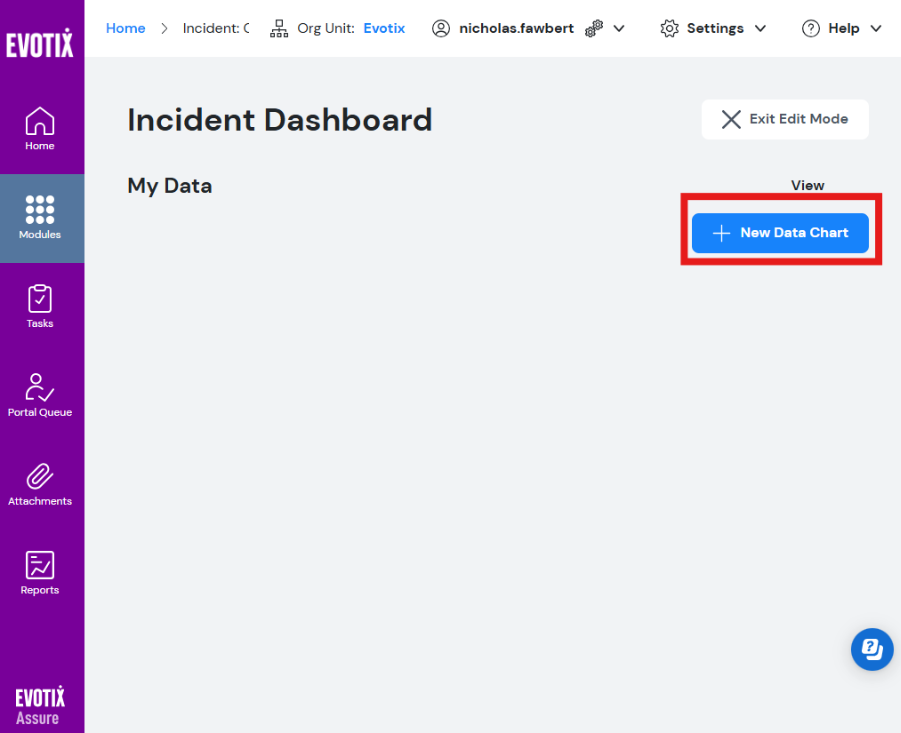

Step 2: Add charts
From the module dashboard, click the Customise icon and then click the New Data Chart icon to create charts specific to that module.

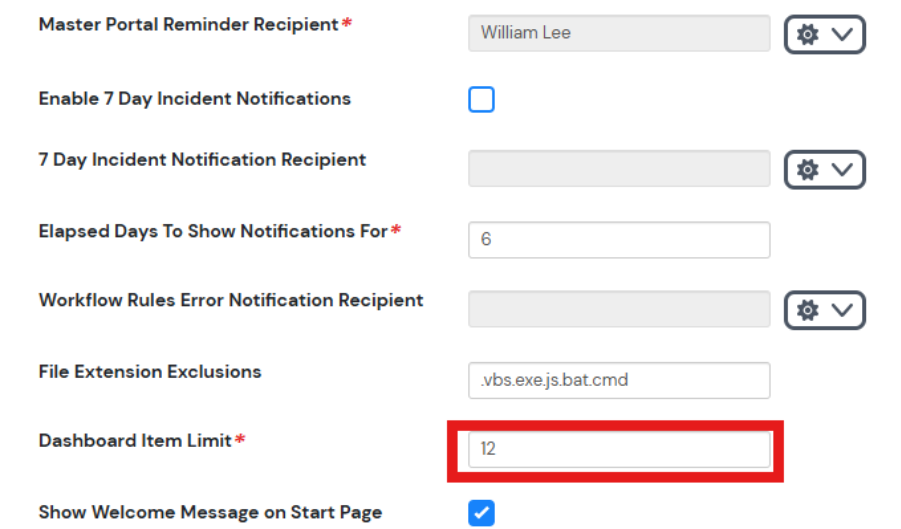

Section 5: System Settings - Dashboard Item Limit

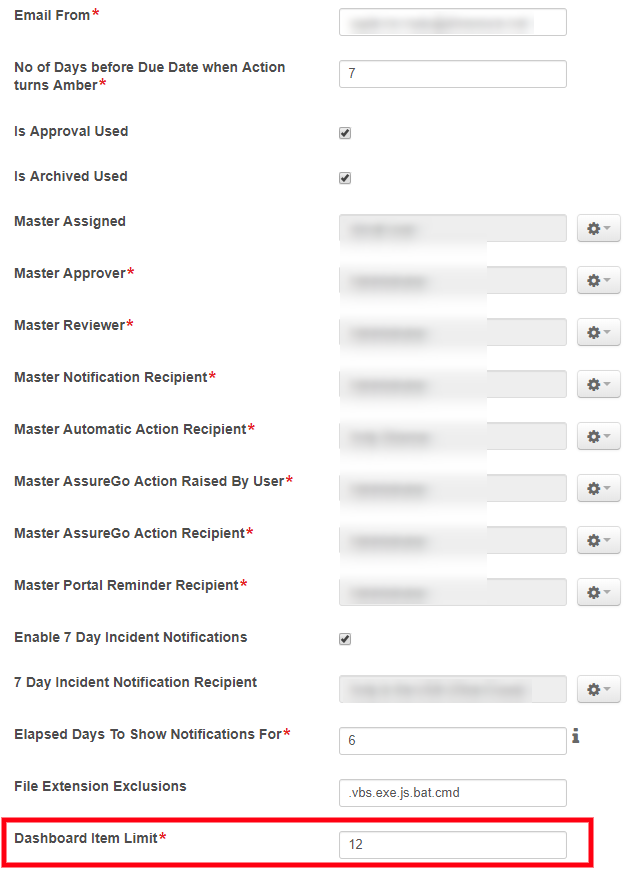

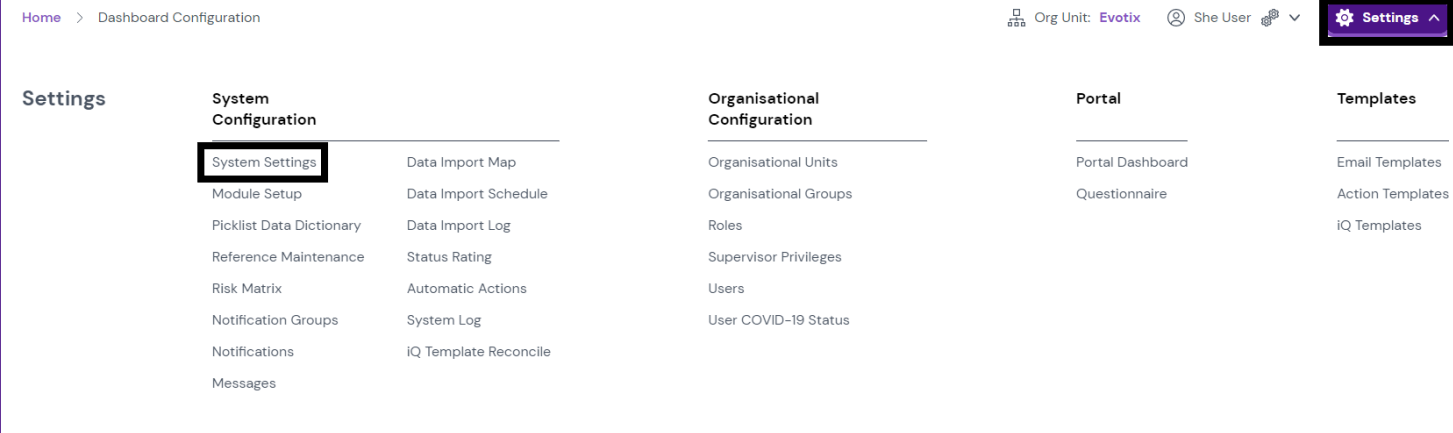

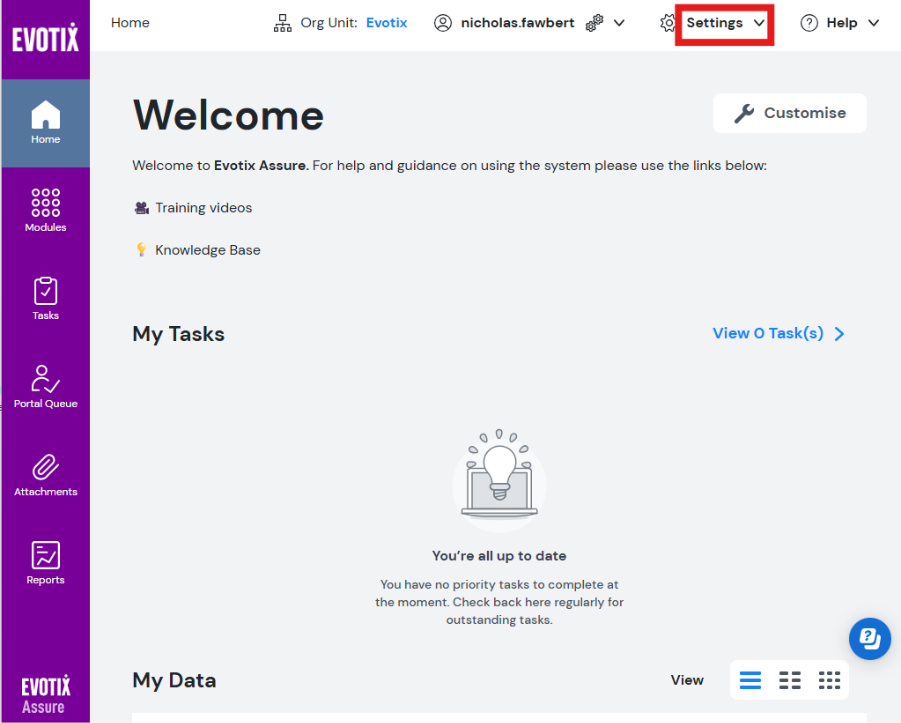

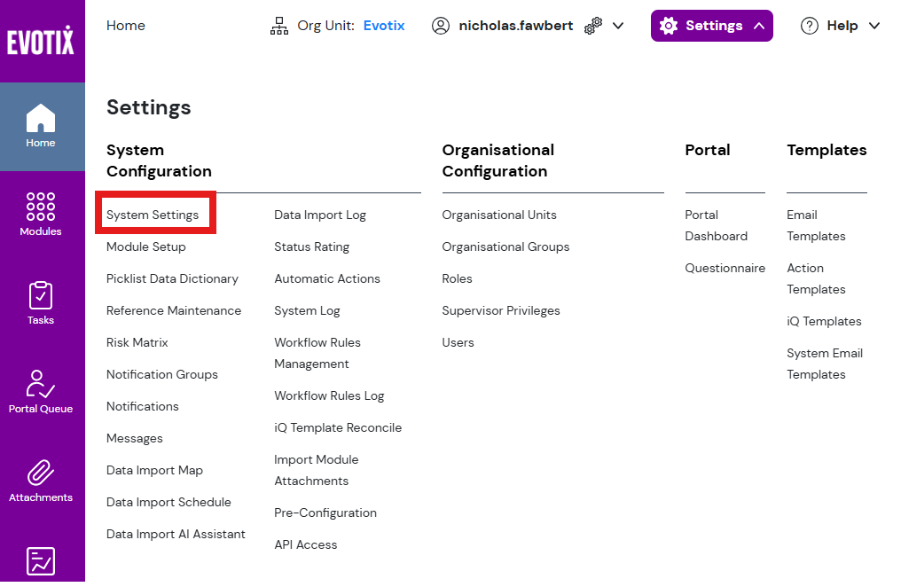

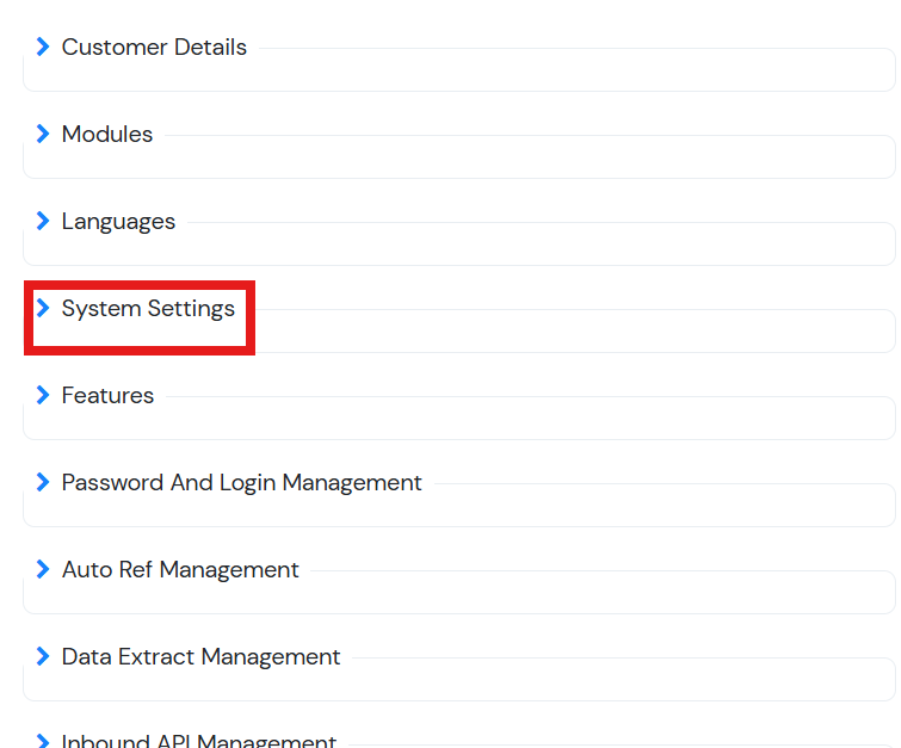

In System Settings (navigated to via Settings > System Configuration > System Settings), there is a section that allows an administrator to limit the number of items (charts and widgets) users can add to their dashboard.
- The 'Manage System Settings' Supervisor Privilege is required to change this limit.
- No more than 15 items will be allowed for most modules.
- Evotix recommends setting a limit between 10 and 12.
