Update the image on the login screen of Assure and AssureGO+

  • Updated

Summary

This article explains how to customize the login screen background image for both Assure (Evotix's cloud-based Environmental, Health, Safety, and Sustainability management software) and Assure Go+ (Assure's mobile web application). Customizing the Login Background Image with a company-relevant image makes the login screen more recognizable to users and supports brand consistency. The procedure is performed in the System Settings Menu by users with the Manage System Settings supervisor privilege. This customization affects both the main Assure web application and the Assure Go+ progressive web app, and images may be cropped differently on various device sizes.

Prerequisites

  • Active Assure user account with Manage System Settings supervisor privilege
  • Image file in PNG or JPEG format
  • Recommended image dimensions: 1440x1024 pixels
  • Maximum file size: 0.5MB
  • Access to Settings > System Configuration > System Settings > Image Upload

Problem / Intent

Organizations need to brand their Assure and Assure Go+ login screens to create a more familiar and recognizable user experience. Without a custom image, the default Evotix background is displayed, which may not align with company branding or help users quickly identify their organization's specific Assure instance.

Steps

1. Navigate to Image Upload Settings

1.1. Log in to Assure with an account that has Manage System Settings privilege

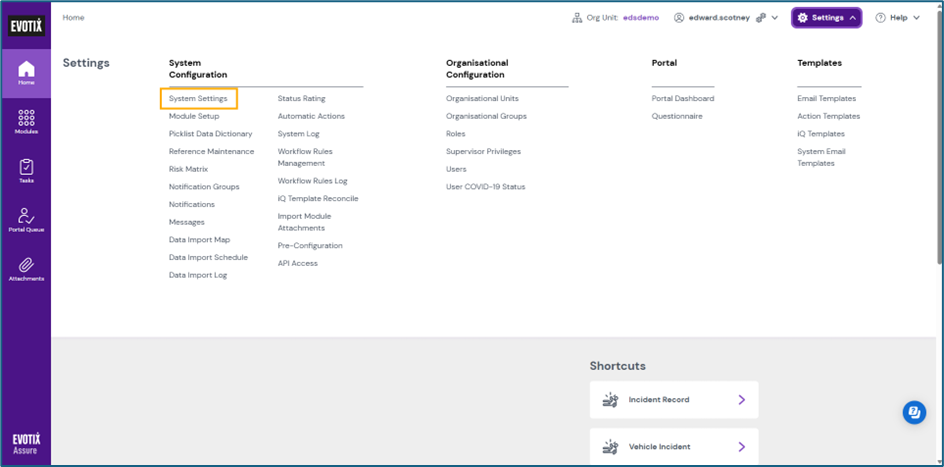

1.2. Click the Settings button in the top right corner of the screen
1.3. Under the System Configuration section on the left, select System Settings


1.4. In the System Settings menu, navigate to Image Upload

2. Upload Login Background Image

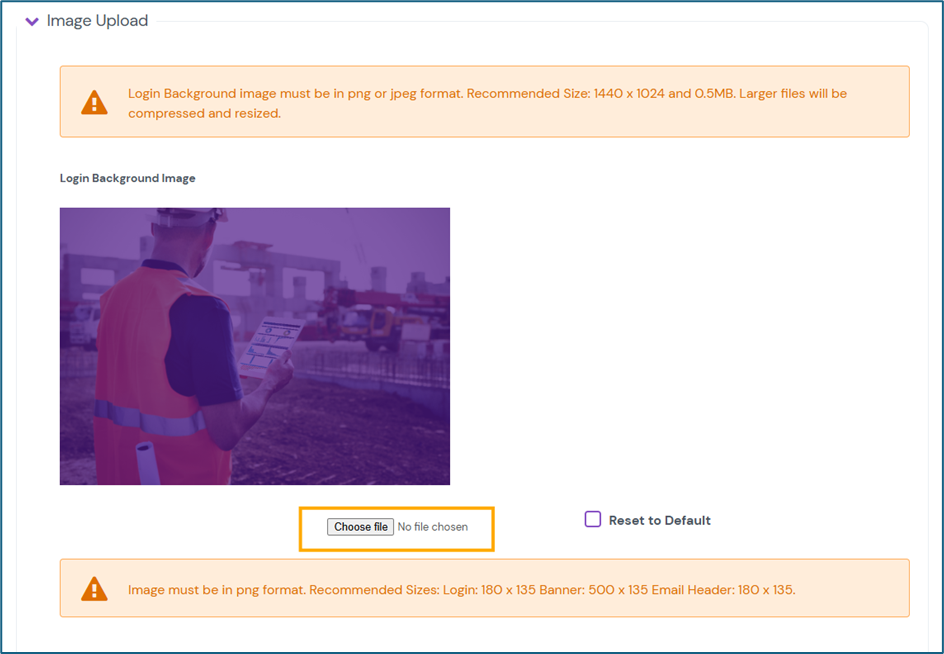

2.1. In the Image Upload section, locate the Login Background Image option
2.2. Click Choose file to browse for your image


2.3. Select your prepared image file (PNG or JPEG format)
2.4. Click Open or Select to attach the file

Note: The image is used on both the Assure web application and Assure Go+ login screens.

3. Review Image Requirements and Compression

3.1. Check the information banner showing recommended image specifications: 1440x1024 pixels and maximum 0.5MB
3.2. If your image exceeds the recommended size, the system will automatically compress and resize it
3.3. The aspect ratio of the image will be retained during any automatic resizing

4. Preview Overlay Colour

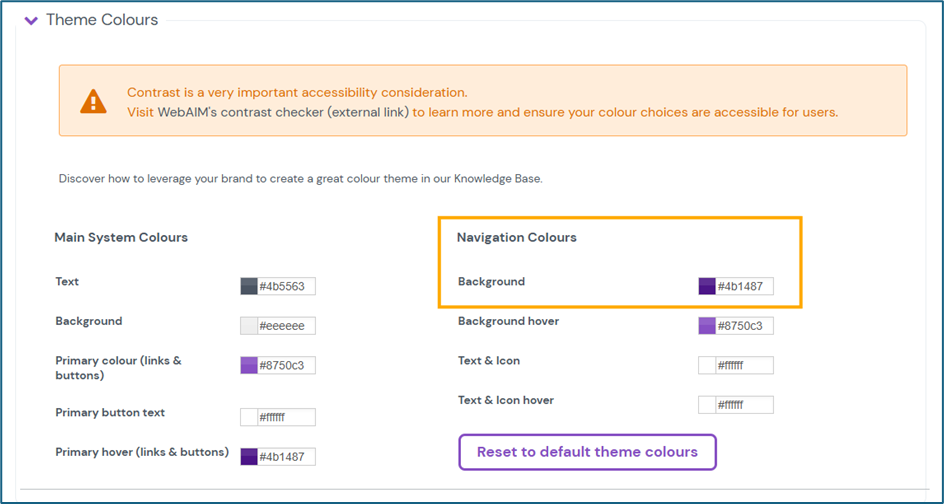

4.1. Navigate to the Theme Colours section within System Settings
4.2. Locate the Navigation Background Colour field in the Navigation Colours table
4.3. Note that this colour is automatically applied as an overlay on your Login Background Image

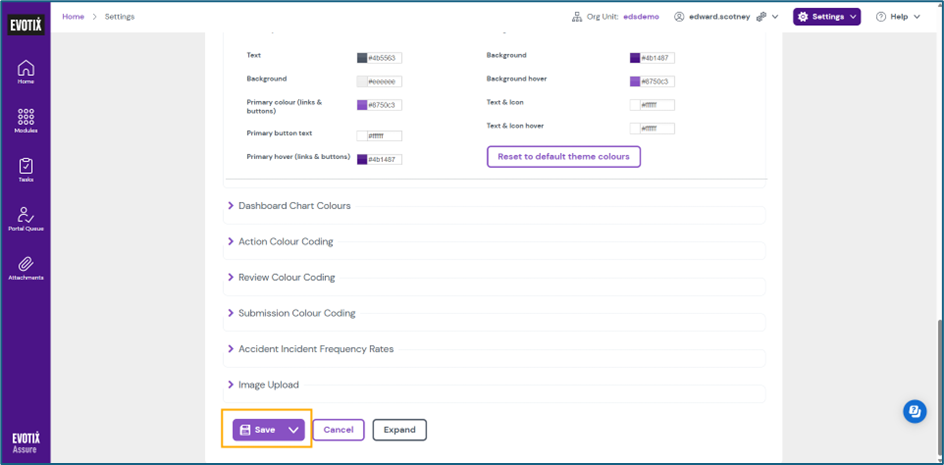

4.4. Save your changes in Image Upload to preview how the overlay colour appears with your new background

5. Reset to Default (Optional)

5.1. If you need to revert to the default Evotix login background image, return to the Image Upload section
5.2. Select the Reset to default button
5.3. Save your changes
5.4. The default image will be restored and visible on your login pages

Notes & Warnings

Warning: The background image applies to both Assure and Assure Go+. Because Assure Go+ is accessed on different devices (smartphones, tablets, desktops), the image will be cropped to fit varying screen sizes. The full image may not be shown on all devices.

Note: The aspect ratio of your uploaded image is always retained, even when automatic compression and resizing occur.

Note: The overlay colour cannot be changed independently for the login screen. It is sourced from the Navigation Background Colour in the Theme Colours section and applies system-wide to navigation elements.

Note: Image changes take effect immediately after saving but may require users to clear their browser cache or hard-refresh the login page (Ctrl+F5 or Cmd+Shift+R) to see the updated image.

Examples

Example 1: Uploading a Company Logo Background

A manufacturing company wants to display their facility image on the login screen:

  • They prepare an image showing their main factory building at 1440x1024 pixels, saved as a JPEG at 450KB
  • They navigate to Settings > System Configuration > System Settings > Image Upload
  • They click Choose file, select the factory image, and save
  • The image appears immediately on both their Assure web application and Assure Go+ progressive web app
  • On mobile devices, the image is centre-cropped to fit smaller screens

Example 2: Resetting After Unsatisfactory Upload

An organization uploads a background image but finds the automatic compression reduces quality too much:

  • They click the Reset to default button in the Image Upload section
  • They save the changes
  • The default Evotix login background is restored
  • They then prepare a new image that meets the 0.5MB requirement before re-uploading

Example 3: Coordinating Image with Theme Colours

A healthcare organization wants their login screen to match their brand:

  • They set their Navigation Background Colour in Theme Colours to their brand purple (#4b1487)
  • They upload a neutral grayscale image of their campus as the Login Background Image
  • They save changes in Image Upload and preview the result
  • The purple overlay blends with the grayscale background, creating a cohesive branded login experience

Troubleshooting

Symptom: Uploaded image appears blurry or low quality

Cause: The uploaded image file size exceeded 0.5MB or dimensions were significantly larger than 1440x1024 pixels, triggering aggressive automatic compression
Resolution:

  1. Use image editing software to resize the image to exactly 1440x1024 pixels before uploading
  2. Compress the image manually to under 0.5MB using optimized JPEG compression or PNG optimization tools
  3. Re-upload the optimized image via Settings > System Configuration > System Settings > Image Upload

Symptom: Image does not appear after upload

Cause: Browser cache is displaying the previous login screen image
Resolution:

  1. Perform a hard refresh of the login page: Press Ctrl+F5 (Windows) or Cmd+Shift+R (Mac)
  2. Clear browser cache completely and restart the browser
  3. Try accessing the login page in an incognito or private browsing window
  4. Verify the upload was saved by navigating back to Image Upload settings

Symptom: Image is cropped incorrectly on mobile devices

Cause: Assure Go+ automatically crops the Login Background Image to fit different screen dimensions and orientations
Resolution:

  1. Design your image with important visual elements centered, avoiding critical details near edges
  2. Test the image appearance on multiple device types (smartphone, tablet, desktop) using Assure Go+
  3. If necessary, create an image with a simpler composition or more uniform background that tolerates cropping
  4. Consider using a solid or gradient background that does not rely on specific visual elements

Symptom: Overlay colour makes image difficult to see

Cause: The Navigation Background Colour specified in Theme Colours creates an overlay that obscures the uploaded background image
Resolution:

  1. Navigate to Settings > System Configuration > System Settings > Theme Colours
  2. Adjust the Navigation Background Colour to a more transparent or lighter shade
  3. Save changes and preview in the Image Upload section
  4. Alternatively, choose a Login Background Image with higher contrast or lighter tones that remain visible under the overlay

Symptom: Cannot access Image Upload option

Cause: User account does not have the required Manage System Settings supervisor privilege
Resolution:

  1. Contact your Assure Administrator to request the Manage System Settings privilege
  2. Alternatively, ask an administrator with the required privilege to upload the image on your behalf
  3. Verify your user account's Supervisor Privileges via Settings > Organisational Configuration > Supervisor Privileges

FAQ

Q: Can I use different images for Assure and Assure Go+?
A: No. The Login Background Image setting applies to both the Assure web application and the Assure Go+ progressive web app. A single image is used across both platforms.

Q: What image formats are supported?
A: Only PNG and JPEG formats are accepted for the Login Background Image upload.

Q: What happens if my image is larger than the recommended 1440x1024 pixels and 0.5MB?
A: The system will automatically compress and resize the image to meet specifications. The aspect ratio will be retained, but image quality may be reduced due to compression.

Q: Can I change the overlay colour that appears on the login background?
A: Yes, but not independently. The overlay colour is sourced from the Navigation Background Colour field in the Theme Colours section of System Settings. Changing that colour will affect both the login screen overlay and the navigation bar throughout Assure.

Q: Will users see the new background immediately after I upload it?
A: Yes, the new image takes effect immediately upon saving. However, users may need to clear their browser cache or perform a hard refresh (Ctrl+F5 or Cmd+Shift+R) to see the change if their browser has cached the previous image.

Q: Why does my image look different on mobile devices?
A: Assure Go+ is used on devices with varying screen sizes and aspect ratios. The system crops the image to fit each device's screen, so the full image may not be visible on all devices. Center important visual elements in your image to minimize cropping issues.

Q: How do I restore the default Evotix background image?
A: Navigate to Settings > System Configuration > System Settings > Image Upload, click the Reset to default button, and save your changes. The default Evotix image will be restored.

Related Articles

AI Metadata

Product Area: System Configuration, Branding & User Interface

User Role: Assure Administrator, System Administrator, users with Manage System Settings supervisor privilege

Tags: login screen, background image, branding, image upload, system settings, theme colours, overlay colour, Assure Go+, progressive web app, customization, company branding, user interface, mobile app, image compression, aspect ratio

Version/Region: All Assure versions and regions. Feature available in both Assure web application and Assure Go+ progressive web app.

Important synonyms: AssureGO+ (without spaces), Login screen image, login page background, background customization, company logo

Suggested embedding keywords: customize login background Assure, upload login image Assure Go+, change login screen branding Evotix, Assure login page customization, company branded login screen, reset default login image, Theme Colours overlay, Navigation Background Colour, image upload system settings, login screen configuration Assure

Relevant modules: System Settings, Image Upload, Theme Colours, System Configuration

Cross-module implications: This feature affects both the Assure web application and the Assure Go+ mobile progressive web app. Changes to the Theme Colours (specifically the Navigation Background Colour) in System Settings will affect the overlay colour applied to the Login Background Image, impacting the visual appearance across both platforms. The same Login Background Image is displayed on all login screens regardless of whether users access Assure via web browser or the Assure Go+ app on mobile devices.
