This article explains how a Systems Administrator configures Evotix Assure to send an automatic email notification to a designated user whenever a Workflow Rule (an automated rule that assigns personnel or sets record status based on defined criteria) produces an unsuccessful outcome. The notification is triggered by specific error entries written to the Workflow Rules Log (the system log that records the result of every rule execution). The configuration is completed in Settings > System Configuration > System Settings using the Workflow Rules Error Notification Recipient field. Only users who hold permission to manage Workflow Rules appear in the recipient selection list.
Overview
When a Workflow Rule is triggered, the outcome of the rule is logged in the Workflow Rules Log. There are scenarios where a Workflow Rule is unsuccessful and some action is needed -- for example, to manually change a record's workflow, correct an out-of-date rule, or enable the workflow for a module. For example, a Workflow Rule cannot run if the assignee no longer holds the correct permissions to be assigned the record. To be notified of any of these instances, an Administrator can configure Assure to send a notification to a selected user when one of these unsuccessful log entries is created, enabling the Administrator to identify and rectify the issue.
Prerequisites
- The user must hold Systems Administrator access to Assure.
- The intended notification recipient must hold permission to manage Workflow Rules. The available recipient list only includes users who have permission to manage Workflow Rules.
How to Configure the Workflow Rules Error Notification Recipient

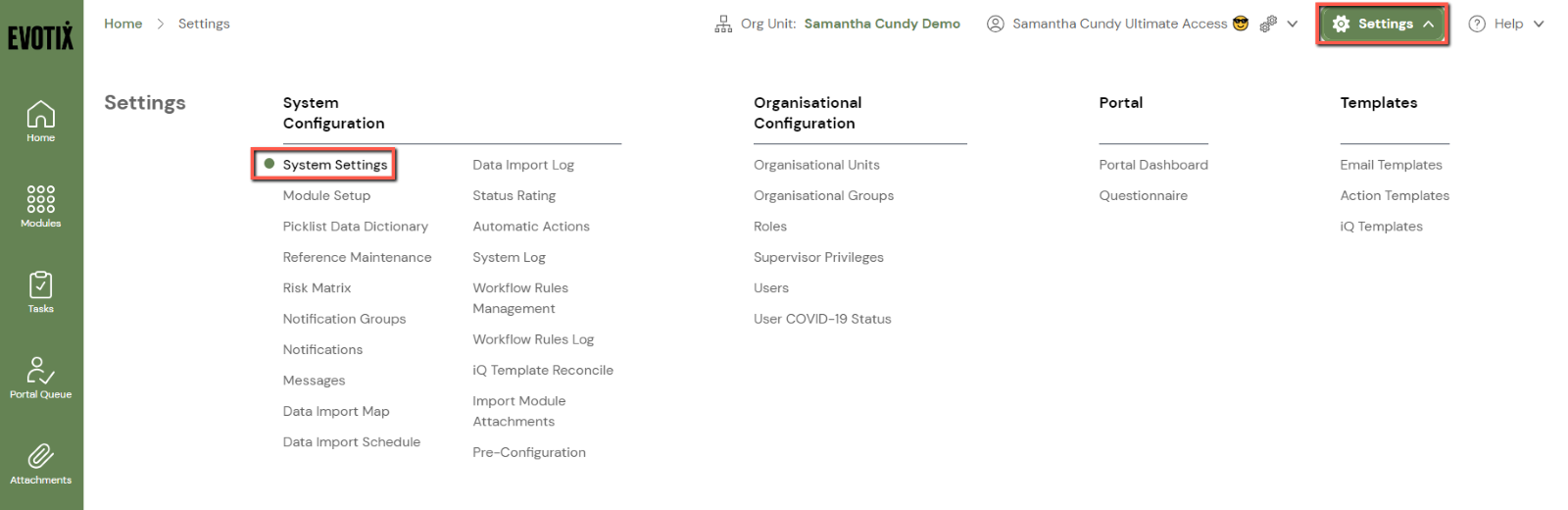

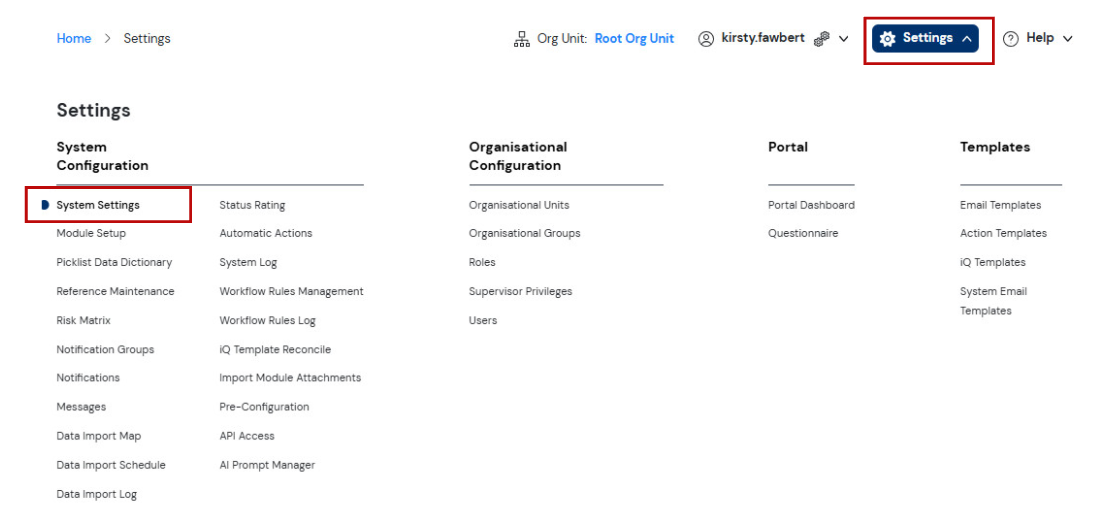

- Navigate to Settings (top-right of the navigation bar).
- Under System Configuration, select System Settings section.

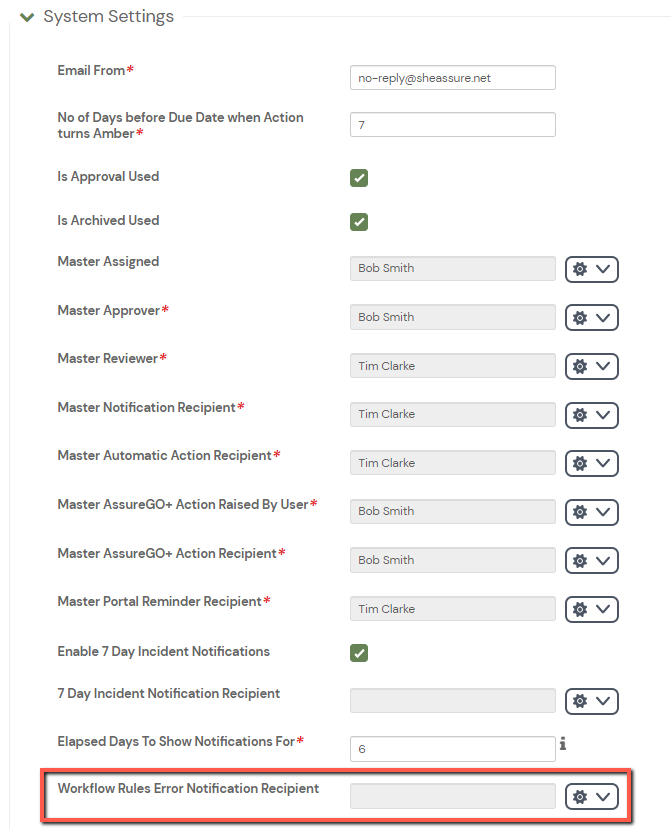

- Locate the Workflow Rules Error Notification Recipient field.
- Select the user who should receive error notifications from the dropdown. The Workflow Rules Error Notification Recipient field allows the selection of a user to receive notifications when Workflow Rule errors occur.
- Click Save to apply the setting.
Note: The Workflow Rules Error Notification Recipient field is found within the same System Settings screen that contains other system-wide notification and workflow preferences, such as Master Approver, Master Assignee, and Master Notification Recipient.
Unsuccessful Outcomes That Trigger the Notification Email
The email notification triggers on the following unsuccessful outcomes:
| Unsuccessful Outcome Message | Resolution |
|---|---|
| Outcome execution for rule {RULE NAME} was unsuccessful. Module or approval system is not enabled for {MODULE}. | Enable the approval system for the module within Module Setup. |
| Outcome execution for rule {RULE NAME} was unsuccessful. Configured user does not have permissions to become the approver for record {MODULE} - {RECORD REF}. | Update the user's permission to allow the user to approve records for that module, or select a new approver within the rule. |
| Outcome execution for rule {RULE NAME} was unsuccessful. Configured user does not have permissions to be assigned to record {MODULE} - {RECORD REF}. | Update the user's permission to allow the user to be assigned records for that module, or select a new assignee within the rule. |
| Rule {RULE NAME} should have executed an outcome. The approvals process was turned off when this record was created. Record {MODULE} - {RECORD REF} will need to be manually assigned to allow outcomes to be executed. | Ensure the approvals process is now turned on and manually assign the record. Once the record has been manually assigned, Workflow Rules will be able to run against the record as normal. |
| Outcome execution for rule {RULE NAME} was unsuccessful. Internal processing issue. | Ensure all setup for the approvals process, the Workflow Rule, and user permissions are correct. If the issue persists, contact the Evotix Support Team. |
