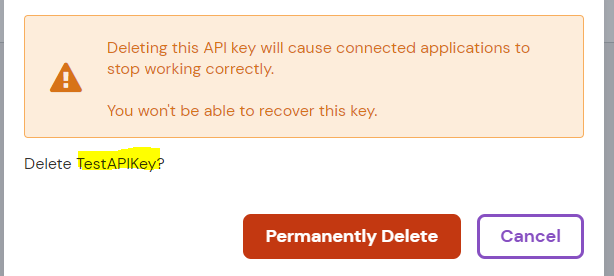

This article explains how to create and delete API Keys (authentication credentials used to authorise access to the Assure Customer API) within Assure. API Key management is available to users who hold the Manage API Supervisor Privilege. The API Access section is available to all customers immediately; however, API keys will not return data until the relevant API feature (data extraction or inbound user management) has been enabled and configured by Evotix. Up to 30 API keys can be created per customer. Each key must have a unique title. The key value is displayed only once at creation and cannot be retrieved later. Deleting a key immediately removes API access for any system using that key.
Prerequisites
- The user must hold the Manage API Supervisor Privilege in Assure.
- For data extraction or inbound user management to function, the relevant API must be enabled and configured by the Evotix Support Team.
- Data extraction (outbound API)
- User management integration (inbound API)
Usage plans
When using our API Key’s, a usage plan has been developed to ensure that you maintain a reasonable level of API usage. There is a single plan for each customer which is linked to all API keys for that customer, this means that these limits are combined across requests from both the inbound and outbound API’s for a given period.
The limits per customer usage plan can be found below:
| Limit | Value |
|---|---|
| Rate limit (requests per second) | 10 |
| Burst limit (requests per second) | 20 |
| Quota (requests per day) | 10,000 |
You can create up to 30 API keys to give you flexible for setting up your API integration to your requirement.

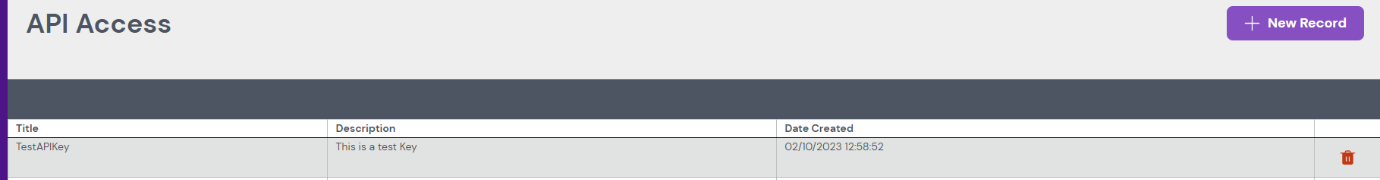

Settings > System Configuration > API Access
Each system interacting with the API should have its own dedicated API key. The title must:
- Be unique
- Clearly indicate the system using the key
- Be a maximum of 32 characters
- Contain only alphanumeric characters, underscores, and hyphens
The description should provide enough detail to understand the key's purpose.

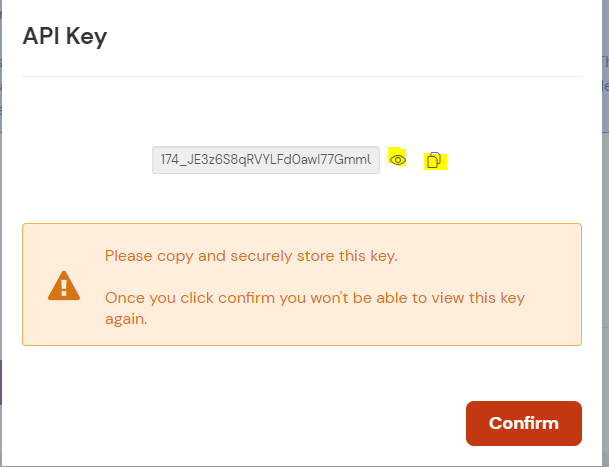

- Click Show Key to reveal the key value.
- Click Copy Key to copy the value to the clipboard.
- Save the key value securely.
- Click Confirm.
